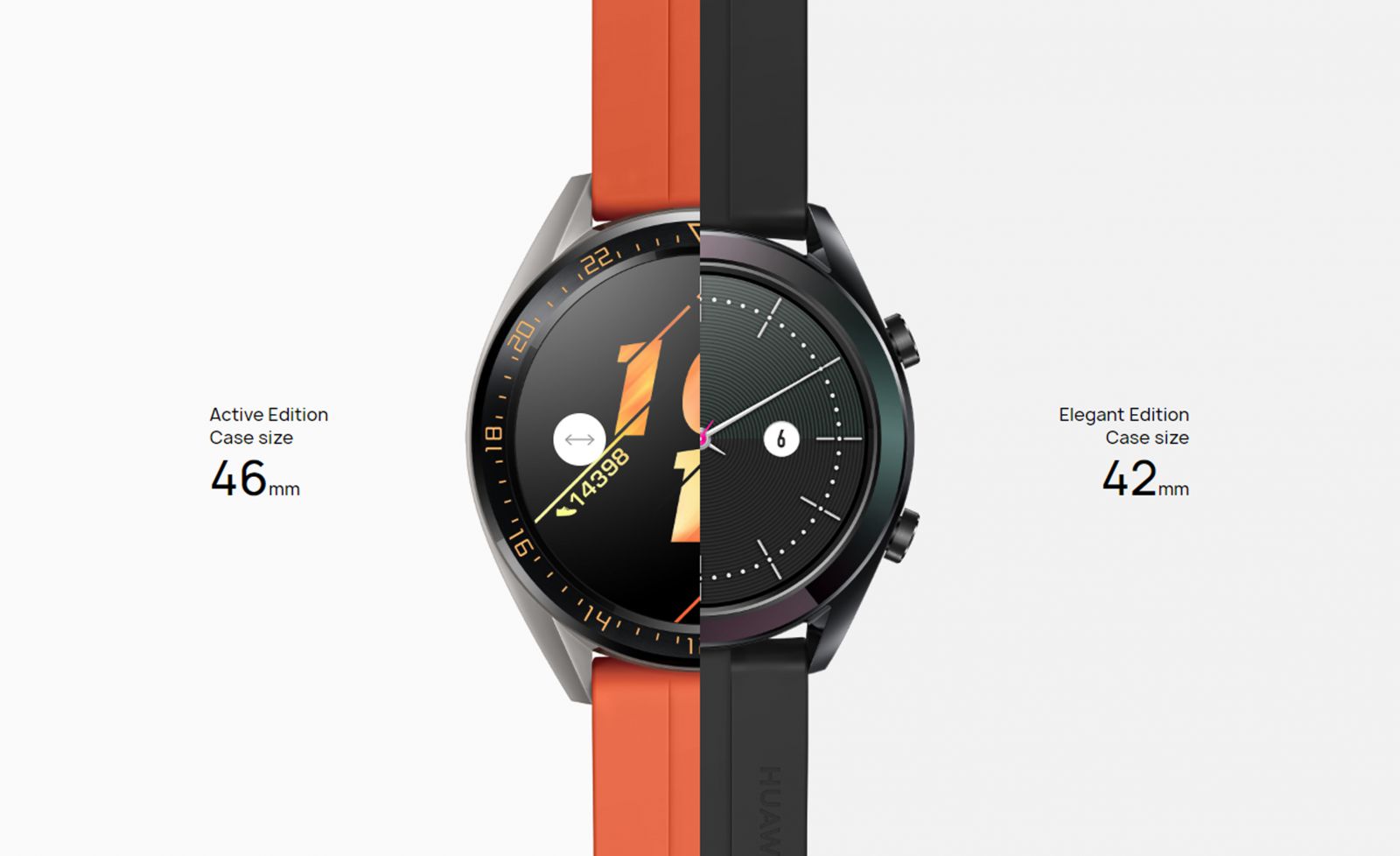

DIMENSIONS
Active / Sport / Classic Edition:
46.5 mm x 46.5 mm x 10.6 mm
Wrist coverage range 14~21 cm
Elegant Edition:
42.8 mm x 42.8 mm x 10.5 mm
Wrist coverage range 13~19 cm
WEIGHT
Active / Sport / Classic Edition:
Approximately 46 g (without the strap)
Elegant Edition:
Approximately 36.2 g (without the strap)
*Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.
WATCH CASE
Colour:
Black Stainless Steel, Stainless Steel,
Titanium Grey Stainless Steel
Material:
Metal + Plastic + Ceramic
WATCH STRAP
Active / Elegant Edition:
Dark Green Fluoroelastomer Strap, Orange Fluoroelastomer Strap,
White Fluoroelastomer Strap, Black Fluoroelastomer Strap
Sport / Classic Edition:
Graphite Black Silicone Strap,
Saddle Brown leather Silicone Strap

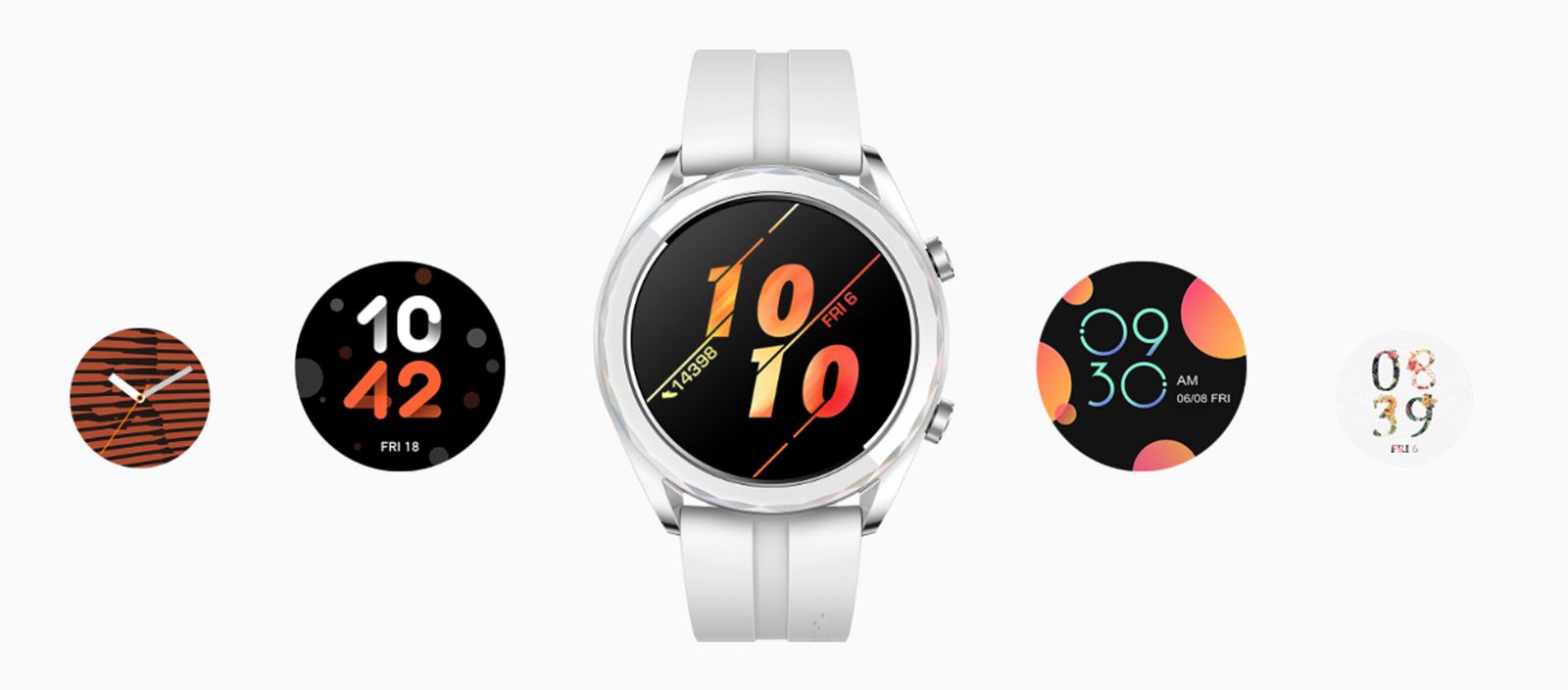

DISPLAY
Active / Sport / Classic Edition:
1.39 inch AMOLED 454 x 454 HD
Elegant Edition:
1.2 inch AMOLED 390 x 390 HD
The AMOLED touchscreen supports slide and touch gestures.
GPS
Supported
CONNECTIVITY
Wi-Fi: Not supported
Bluetooth: BT4.2, BLE
SENSORS
Accelerometer sensor
Gyroscope sensor
Magnetometer sensor

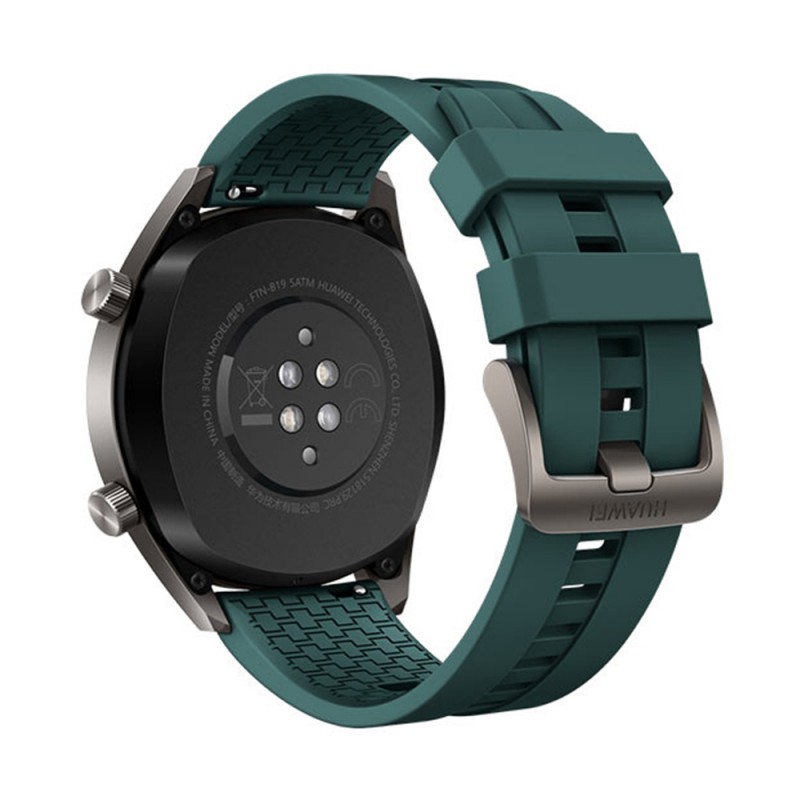

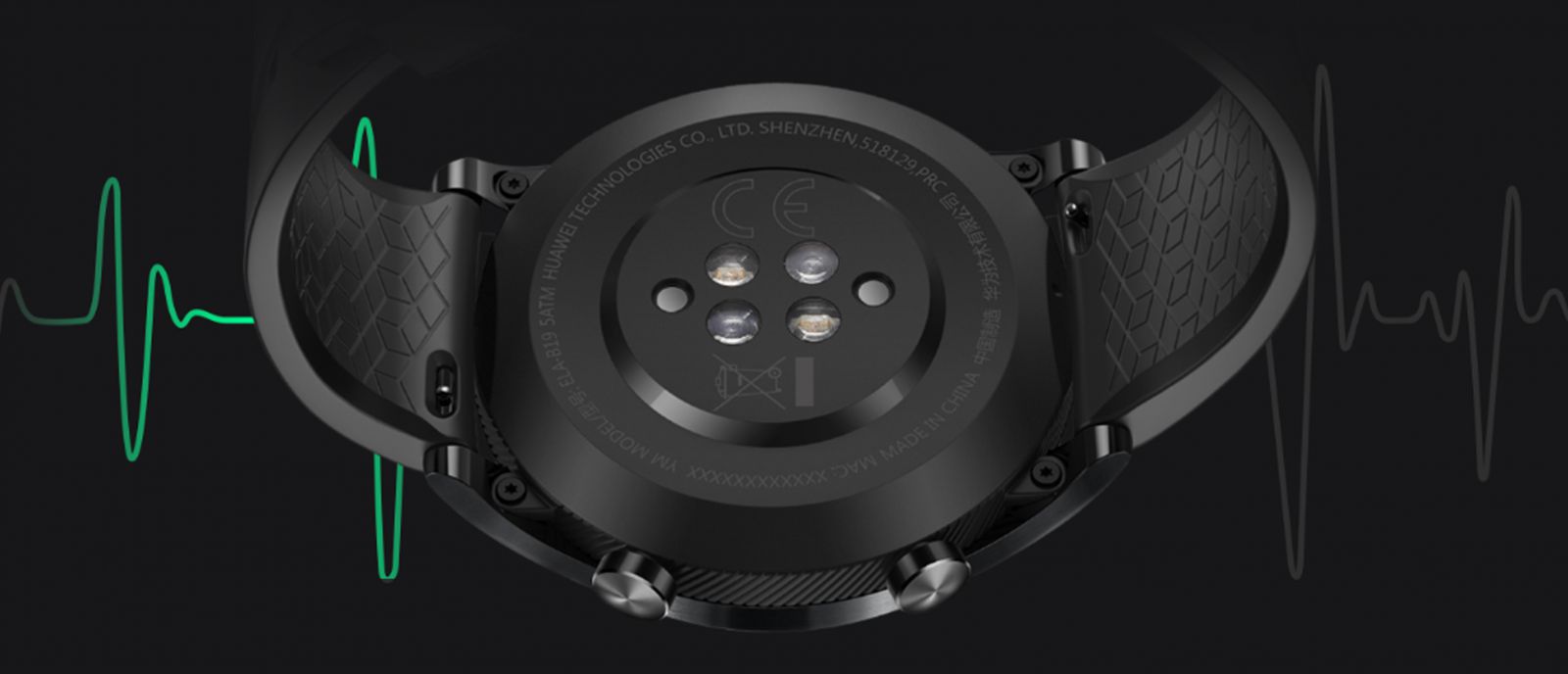

Optical heart rate sensor
Ambient light sensor
Barometer sensor

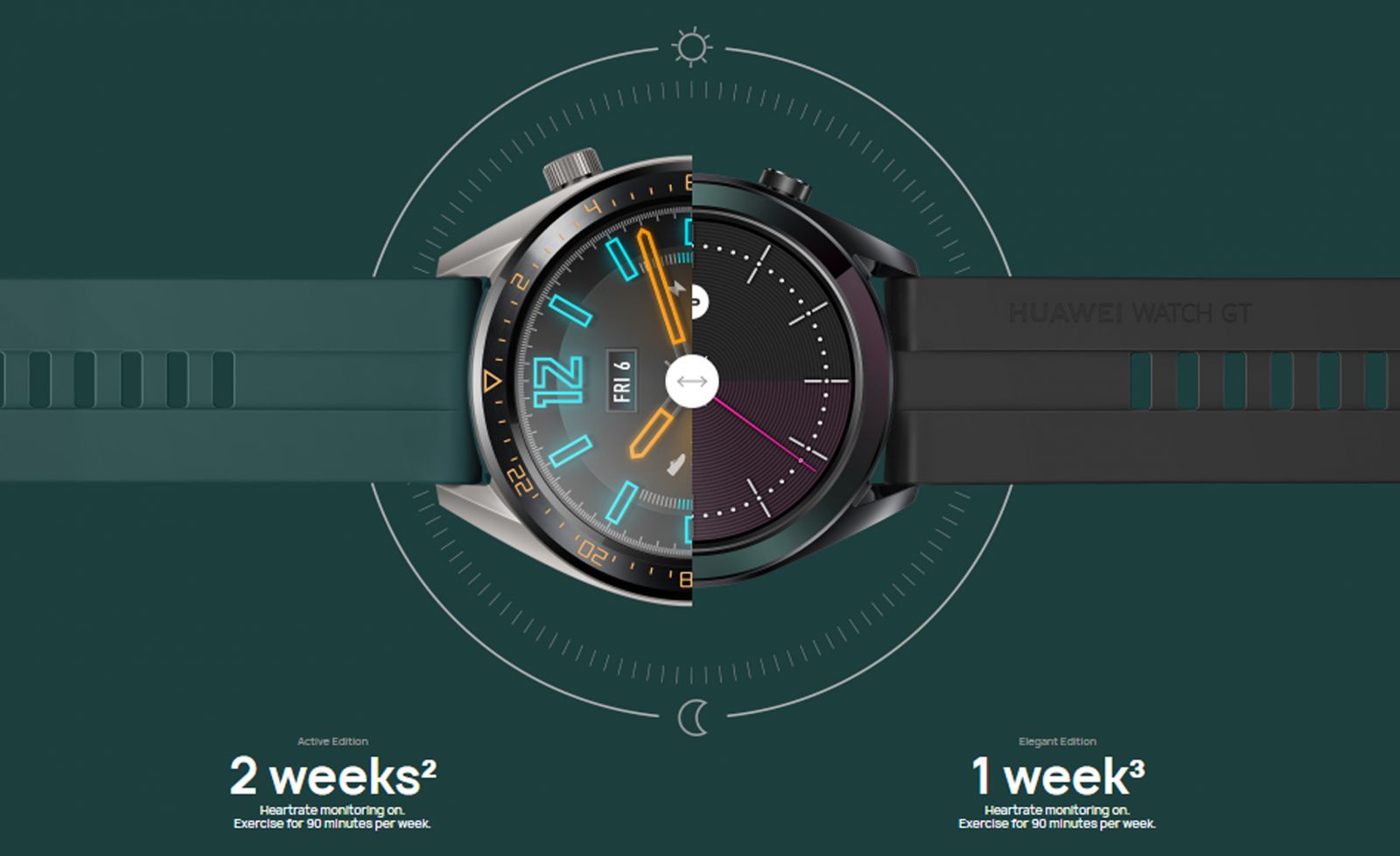

BATTERY
Battery Life:
Active / Sport / Classic Edition:
14 days for typical use.
Elegant Edition:
7 days for typical use.
(The typical usage scenarios are decided based on the user habits. The specific battery life depends on the user habits and usage frequency.)
Charger Voltage and Current Requirements:
5V 0.5A / 1A / 1.5A / 2A
*Typical value. Actual capacity may vary slightly.
This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity.
The actual working time may slightly differ due to different user habits and band configurations.
BUTTON
Power button, function button
SYSTEM REQUIREMENTS
Android 4.4 or later
iOS 9.0 or later
CHARGING PORT
Magnetic charging thimble
WATER RESISTANCE
5 ATM water-resistant
IN THE BOX
Packing List: Watch x 1
Charging cradle x 1
Charging cable x 1
User Guide x 1
*The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To provide accurate product information, specifications, and features, HUAWEI may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
